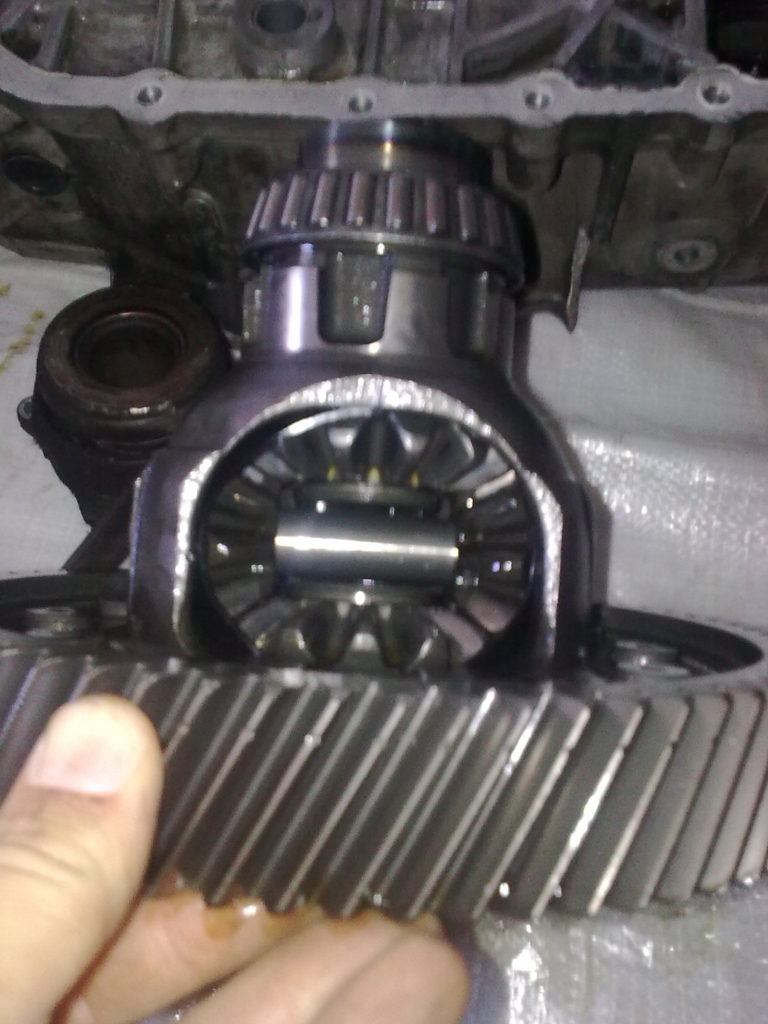

Each Phantom Grip Limited Slip LSD Conversion kit comes with a step by step pictorial install guide for the most common open diff types we come across like the one pictured here.
The installation is basic enough though we recommend that the installation only be performed by individuals experienced in the transmission assembly-disassembly and functionalities, seals, etc. Although we have a pretty extensive part list, not every install will be plug & play, so if you do not have the ability to resurface the axle gears for clearance tolerance inconsistencies, by way of a lathe, mill, or even a bench grinder, it is best to take this to the machine shop when you have the lsd kit in hand and you can see what your working with.
There are years of proven performance gains and extensive research & development to back this unique yet simple design.
If your diff does not fall into the most common open diff type, being enclosed or more than 4 gears, and/or cross pins, please contact us to ensure you get the correct installation guide. We also provide in house installations at no additional charge with the purchase of the lsd conversion kit with a quick turn around time. This can be arranged by contacting us for more info.
